AMC KIT Complete Central C24GSM PLUS + K-LCD Voice + Sensors, Sirens

Not yet rated Write a review
299.00€
Availability:
In Stock
Product Code:
931
Brand:
AMC Elettronica
AMC Elettronica

Add to Wish List

trustpilot recensioni

  • Quick delivery in EU & UK

  • Easy returns within 14 days

  • Always follow your orders

  • Professional tech assistance

Description

C24GSM PLUS & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp ; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp ; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp ; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp ; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
Data Sheet Products
& nbsp; Central C24 Gsm Plus
PDF
& nbsp; Siren SR136 PDF
& nbsp; Mouse 09 PDF
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;
& Nbsp; & Nbsp;

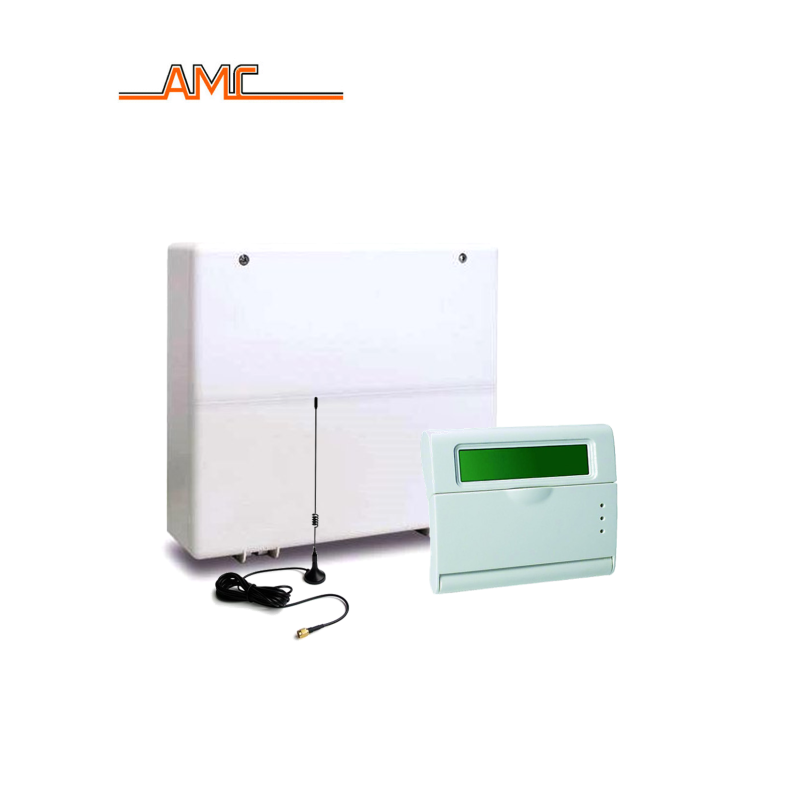

C24 GSM is a control unit that manages up to 24 inputs, a telephone dialer on an integrated GSM line capable

to send VOICE calls, SMS and CONTACT ID digital protocols. The system is completely remote managed.

The programming can take place via local keyboard or via SMS. & nbsp; & nbsp; & Nbsp;

K-LCD Voice

Remote keyboard AMC K-LCD Voice backlit with LCD display and protective door, suitable for control panels

AMC of the C series

& nbsp; The keyboard consists of 32 configuration and command keys arranged on two lines.

In addition to having keys with numbers from 0 to 9, the keyboard also has other keys with different symbols and functions a

second of the menu you are in located during the programming phase. The keyboard also has 3 LEDs for the

luminous signs. Each led indicates different settings: status & nbsp; of the plant, events in memory

or control of the control panel.

Features

24 freely programmable and configurable alarm inputs (8 on board + 16 expandable)
8 outputs O.C. programmable, remote and keyboard-managed through specific user menu
1 Total program
3 Partial programs
Compatibility with S series accessories:
- up to 4 keyboards
- up to 2 input expansions
- up to 4 remote sockets
12 user codes
8 programmable telephone numbers for voice calls and SMS
8 programmable telephone numbers for digital contact ID transmission
200 programmable telephone numbers for the remote control function
1 input for signaling active / inactive status of remote devices
1 input for activating / deactivating the total program
1 input for activating / deactivating a partial program
1 input for local reset of ongoing calls
1 GSM signaling error output
1 total system status output
1 partial system status output
1 simulation output of the incoming ring usable for connections with remote devices (control panels,

& nbsp; & nbsp; air conditioners or equipment

controlled by telephone etc.).
1 led signaling network / GSM signal OK. (Green color)
1 signaling LED for GSM engine operations (yellow color)
1 system error LED (red color)
1 simulated PSTN telephone line, with which it is possible to telephone with a normal tone telephone, or to connect

the combiner of a central unit.

& nbsp;

Possibility of remote operations, voice-guided, that can be carried out by the user : ITALY It is possible to activate / deactivate the control unit, activate / deactivate the outputs, know the system status.
Possibility to modify parameters, by sending a simple SMS, once all the operations have been performed, a reply text message

will give the requested information and confirmation of what has been done. < / p>

It is possible to activate one or more outputs with a single telephone ring, the system confirms the activation

with a confirmation ring on the caller's phone.
Possibility to control by keyboard sim. Residual credit.
Complete kit with voice-guided LCD keyboard.

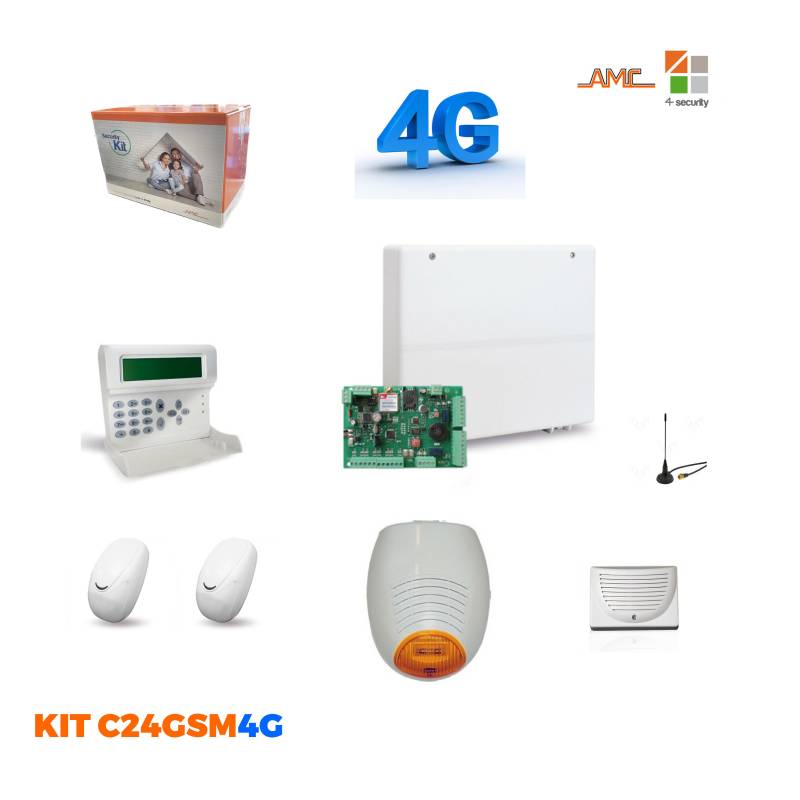

Kit Consisting of:

Nr.1 ​​- C24GSM PLUS: 8-24 zone GSM control unit
Nr. 1 - K-LCD voice: LCD backlit keyboard
Nr. 2 - MOUSE09: Dual technology sensor 10.5Ghz frequency, adjustable range (3-15mt) Anti-slip antimask

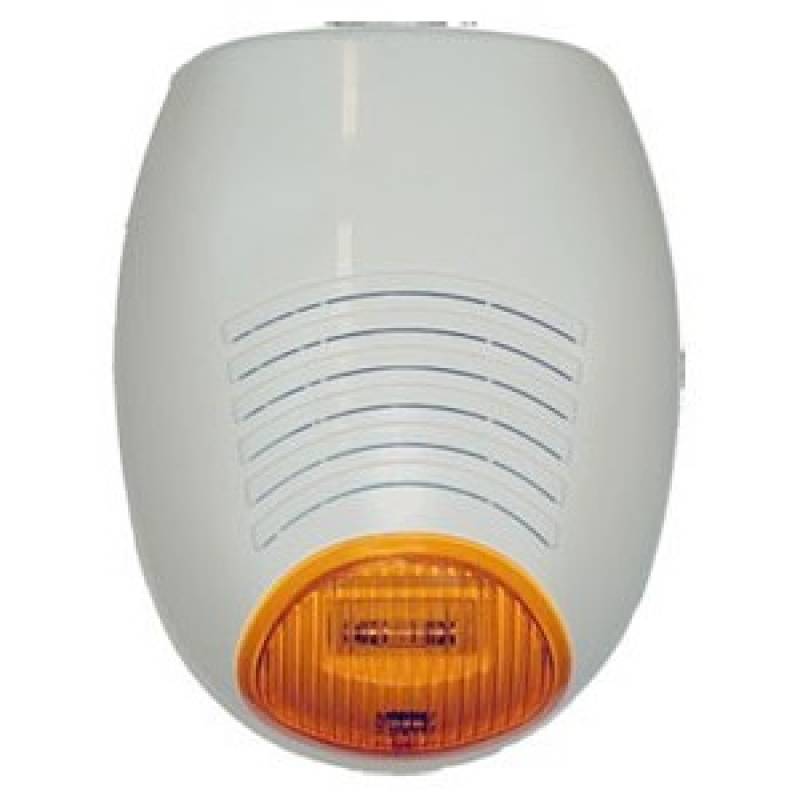

Nr. 1 - SR136: Self-powered outdoor siren
Nr. 1 - PZ2: Piezo electric indoor siren


PROGRAMMING SOFTWARE click here
