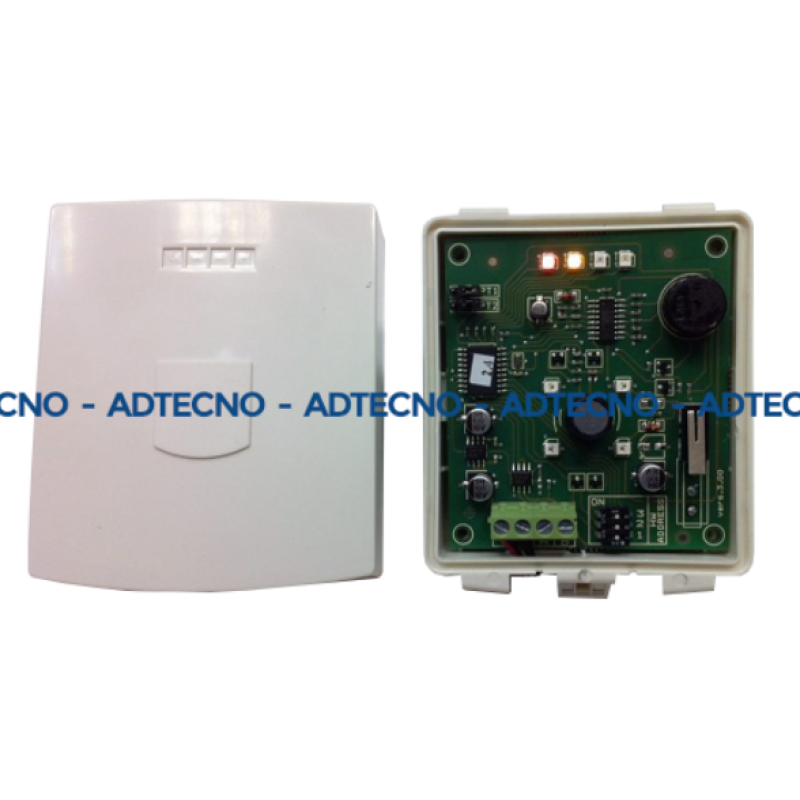

AMC PROXIMITY - Transponder proximity device

AMC Elettronica Proximity transponder device.

TECHNICAL SHEET

Supply voltage: 13.8 Vdc
Nominal current: 60 mA
Maximum current: 80 mA
Suitable for control units: S, R, C, C24GSM series.
Buzzer for sound input and output time
Signaling LED:

Yellow LED \ System inserted
Red LED \ Alarm Memory (New event to read)
Green LED \ System ready (All rest zones)
Red Courtesy LED \ Key recognized

FIXING

- Open the casing by unscrewing the screw on the lower side, and levering on the plastic tooth, taking care not to force it.
- Fasten the rear part to the wall by letting the cable out through the cable gland.
- Set the addressing dip-switches according to the numerical setting required by your installation.
- Close by resting the upper part of the cover making the plastic tooth click and tighten the closing screw.
