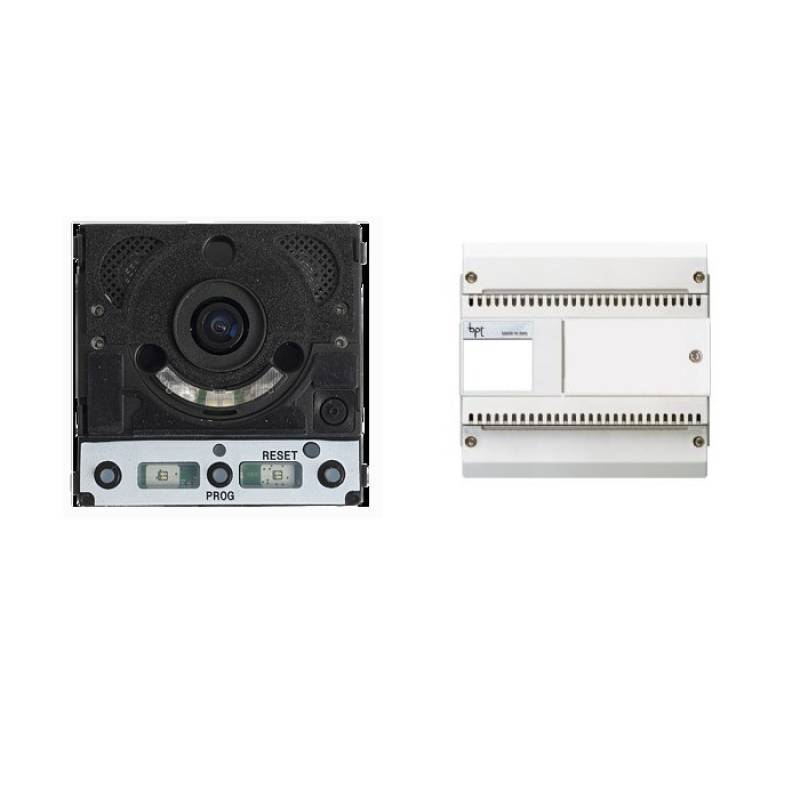

Came Bpt KIT FREE-MTMBM KIT VIDEO base system expandable

Basic kit single-input system expandable up to 98 internal branches composed of
MTMV / 01 without aesthetics and power supply VAS / 100.30

PLUS module MTMV / 01 & nbsp; 62030010

2 call buttons
2 on-board controls: electric lock and auxiliary control (1A, 30 V max)
"Wide eye" optic, 100 ° aperture horizontally and 82 ° vertically, adjustable
High efficiency illuminator (adjustable intensity) with anti-glare diffuser
LED with pictograms for status signals: door opening,
active communication, call in progress and system busy < br> Loudspeaker, microphone and electric lock time adjustments
Double backlighting of the blue or white tag holder with
intensity adjustment
IP54 water and dust protection rating
Front miniUSB for firmware update and programming

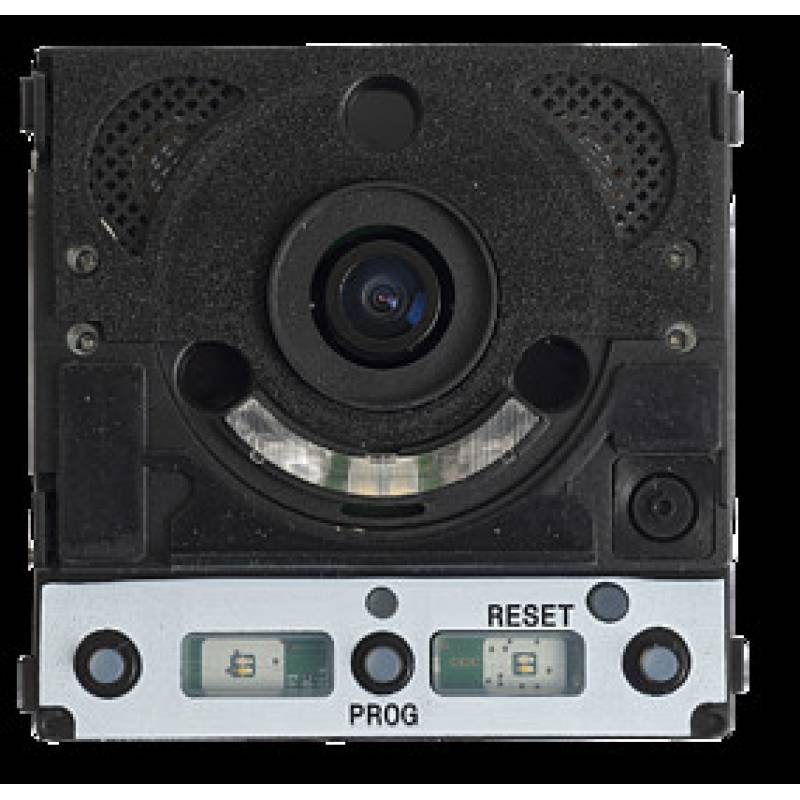

Features Video door entry module for X1 system.
Electronic module with technopolymer body and 2 call buttons with double
backlight for blue or white label holder.

PAL / NTSC camera sensor

680x512 resolution with integrated microprocessor for digital signal processing.

"Wide eye" optic with 100 ° horizontal and 82 ° vertical aperture and digital zoom adjustment.

Uniform illumination of the subject by means of 2 high efficiency white LEDs and anti-glare diffuser.

Equipped with local control for electric lock, auxiliary contact (1A, 30V max), inputs for door opener button and for signaling the status of the door (programmable I / O), output for activation external cameras (programmable I / O).

On the front it is equipped with LEDs for visual indications of the system status.

Adjust the audio volume of the microphone and speaker and the activation time of the electric lock.

Manual or PC programming through the front MINI USB connector.

To be completed with video door phone front. Combined with its front, it guarantees an IP54 water and dust protection degree

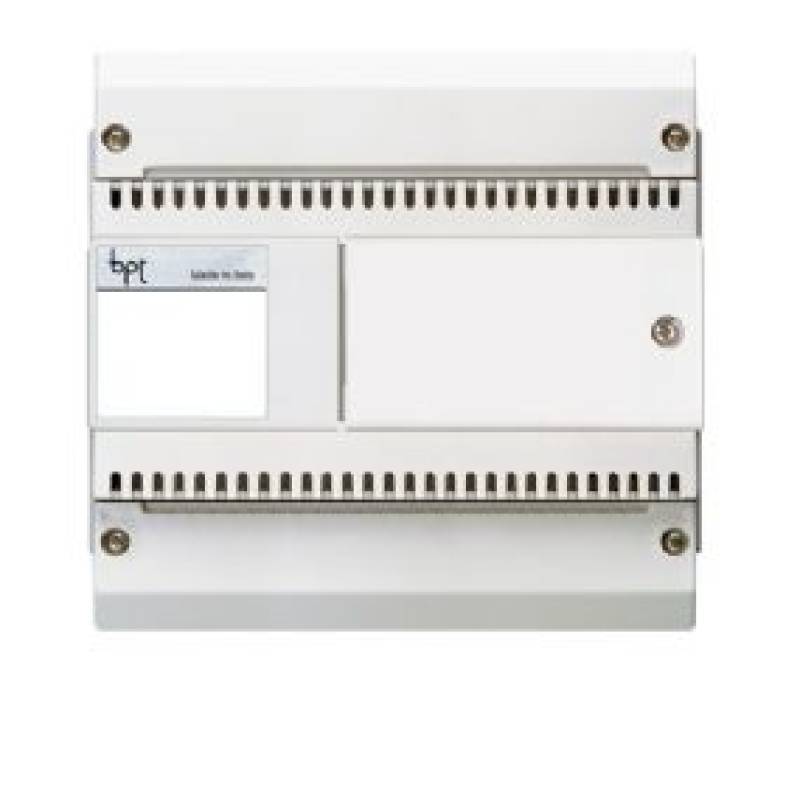

Power supply characteristics VAS / 100.30

Made on plastic container, for installation in switchboards electrical (EN50022). Dimensions 8 low DIN modules.
Degree of protection IP30.
Electronic protection against overloads or short circuits.
Equipped with output terminals for powering the devices (17.5V DC - 1.7 A max). Power supply 230V AC 50/60 Hz. Does not allow the use of RFID and DNA modules for access control.

It is made up of a card containing the rectifier and the stabilizer.
It is capable of delivering 1.7A at 17.5Vdc and is protected against overloads and i short circuits.
The VAS / 100 can also be used as an additional power supply if the needs of the system require it.

NOTE: it can also be used as an additional power supply.
Technical details

Width 140 mm
Height 145 mm
Depth 64.5 mm
DIN 8 module
Weight 1,300 kg
Weight 1,300 kg
Voltage 230V
Frequency 50 / 60HZ
Din Rail mounting type
Minimum operating temp. 0 ° C
Maximum operating temp. + 35 ° C
