Sistel Proximity Key with 2 Tags and inserter

The ARES electronic key is a system digital on / off activation with microcontroller that combines simplicity of installation and use with a high level of security thanks to the use of RFID technology.
1. Key or transponder: is the key that is provided to the user and allows access to the area you want to protect.

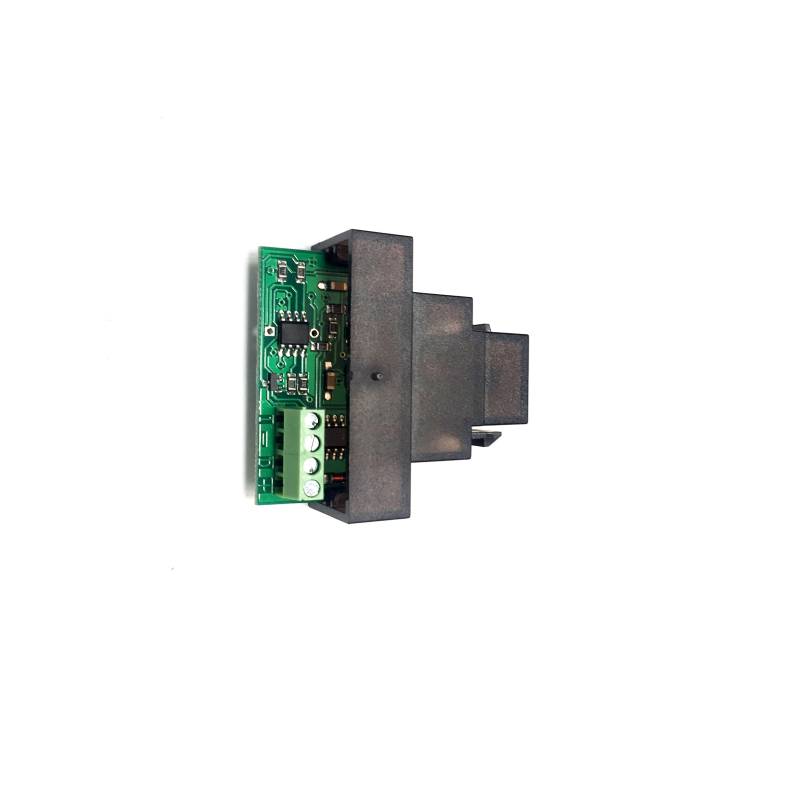

2. Transponder reader: is installed near the access point to the area to be protected. To be inserted in any commercial hole cover and installed inside fruit holders of different series. The fruit transponder reader is equipped with two LEDs (green and red) that allow you to determine the status of the system.
3. Decoding board: is positioned in the alarm control unit or in any case in a protected area not accessible by the external. This card interacts directly with the alarm center.

General characteristics

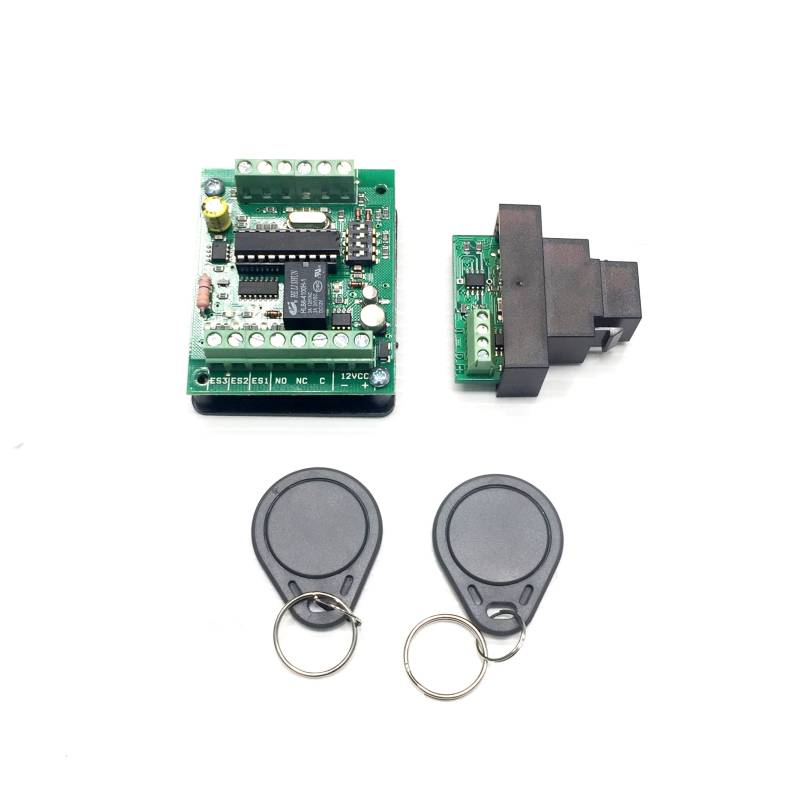

• Complete kit of nr. 1 ARES-INS and nr. 2 ARES-TAG *
• 11-16V power supply
• Number of fruit-board conductors: 3 with shielding
• nr. 3 max inserters connectable in parallel
• Key type: Transponder with storage of up to 400 keys
• Partitioning 3 zones
• Sabotage: false key
• Memory in alarm via dedicated input to bring to 12V
• Inhibition: presence of positive voltage (+ 12V) with the system off
• Operating temperature -10 ° C ÷ 60 ° C
• Board dimensions 64x51x24 mm, Weight 40 gr
• Complies with current regulations

* It is also possible to use the optional RFID keys in" Badge "format. < / span>
