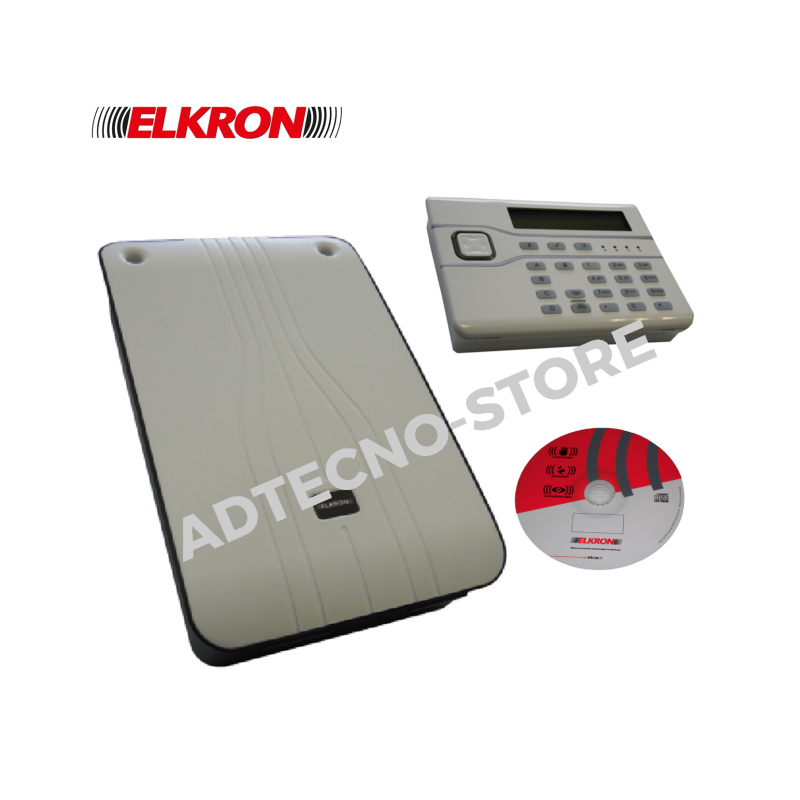

Elkron Hybrid intrusion kit expandable up to 40 zones MB10-40

Hybrid alarm control unit with 40 zones (24 radio zones + 16 rows), with keypad KP01
& nbsp; and web server. 50 user codes, log of up to 1000 events, 4 partitionable areas.
& nbsp; Working frequency 868MHz FM narrow band (20 KZ). 1.5A power supply.
& nbsp; Compliant with EN50131 Grade 2

& nbsp;

TECHNICAL FEATURES

Conformity PD6662: 2004 and EN50131-1: 2004 Grade 2, Environmental class 2, DD243: 2004

Zone 24 radio, 16 wired

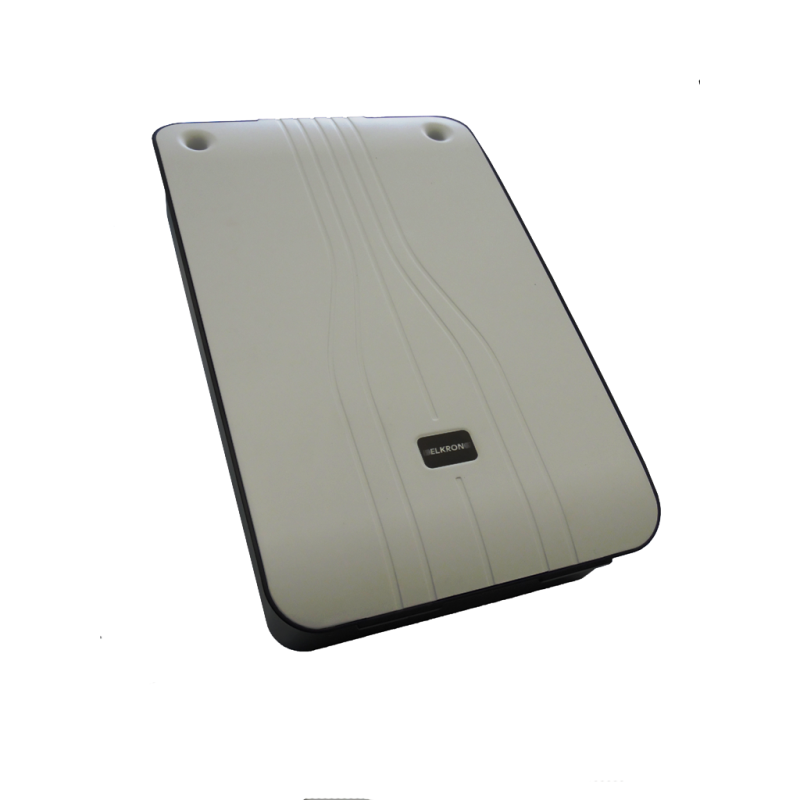

Control unit 40-zone hybrid control unit with keyboard

Keyboards Accepts 4 wired keyboards and 4 radios

Proximity reader The KP10D keypads contain a proximity reader

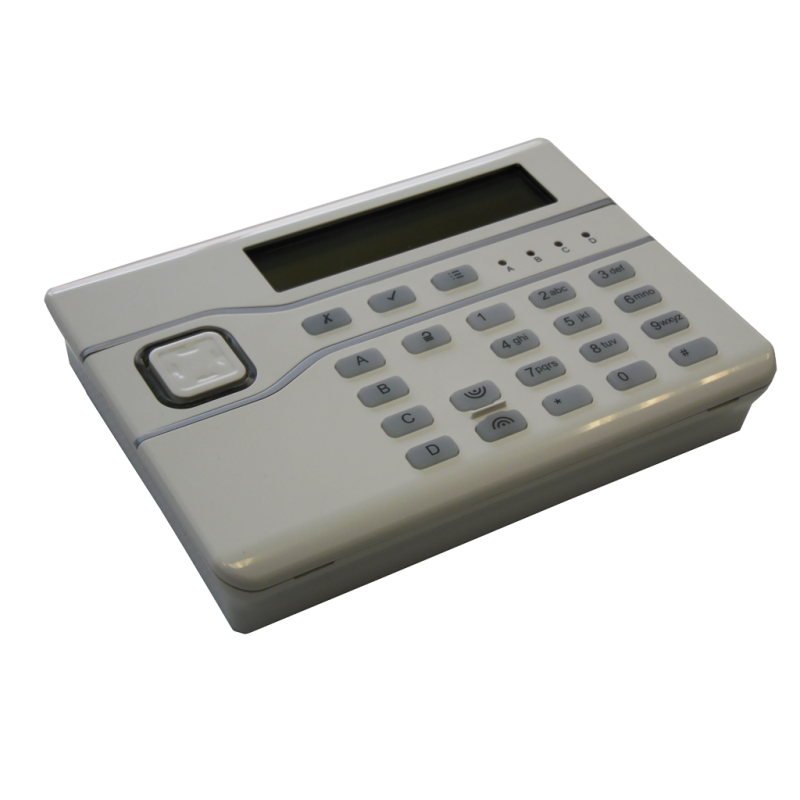

Display Large backlit LCD display with blue light, 2 lines of 20 characters each

Optional settings A = complete insertion, B, C and D = independent partial insertions

Event log 1000 event log with date and time

Access to 50 4-digit user codes, proximity reader and remote control

Internal siren 1 internal 16 ohm speaker

2 relay outputs and 14 open collector outputs (i-rc01 optional relay board)

Remote communications Telephone dialer with voice messages, 8 fast-format channels and contact ID

Power supply Compliant with EN50131-6 type A standard, max. output current. 1.5 A of which 850m A available for devices

external auxiliaries

Battery Accepts a rechargeable lead battery from 12 V up to 7 Ah

Dimensions (H) x (L) x (P) Central: 384 x 245 x 94 mm

Keyboard: 115 x 156 x 34 mm

Central Weight: 1.1 Kg Keyboard: 0.32 Kg

Permitted temperatures Environmental class 2 -10 ° C to 55 ° C @ 75% RH
