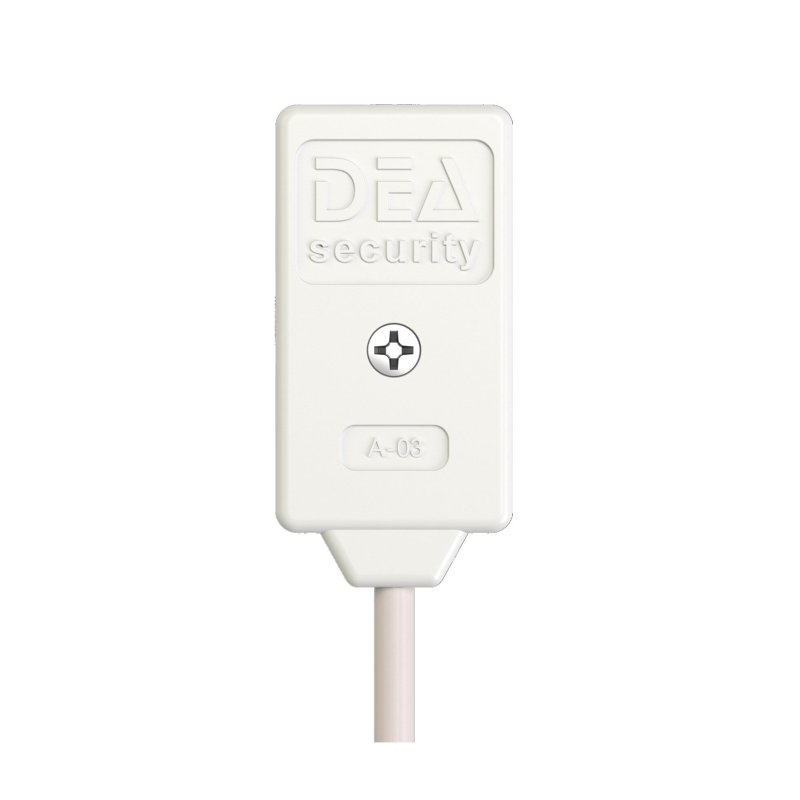

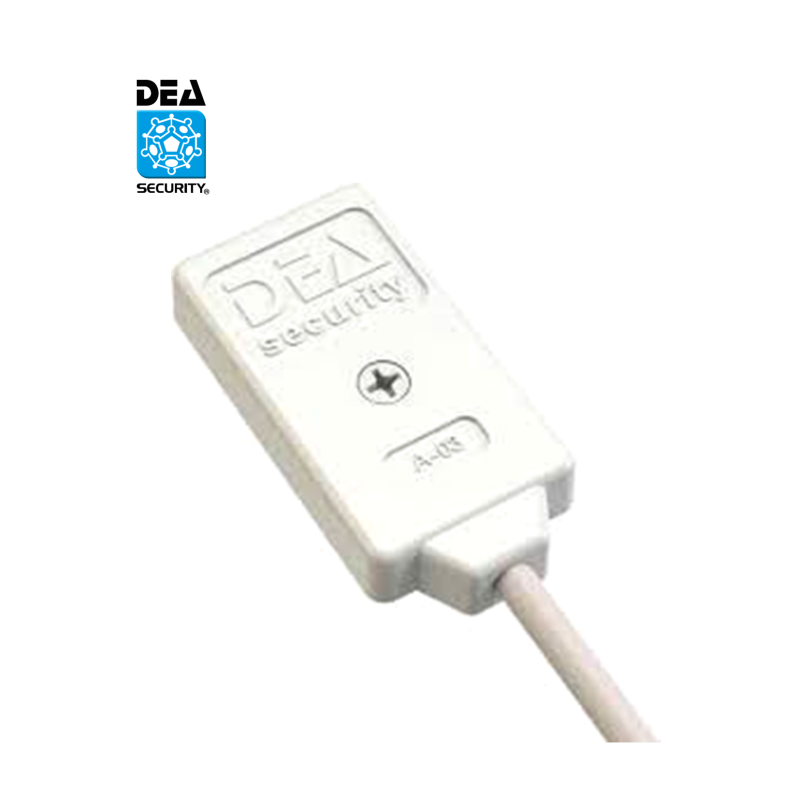

DEA A-03 Seismic sensor

Piezoceramic impact detector. Particularly suitable for the protection of GLASS and WINDOWS, but it can also be used for the burglary protection of small surfaces and equipment.

The A-03 sensor uses a transducer as a sensitive element & nbsp; piezoceramic & nbsp; which, being a passive component, does not need to be powered.

This element is highly resistant to mechanical stress, stainless and inexhaustible, guaranteeing constant detection over time.

If subjected to vibrations, it generates electrical signals which are subsequently interpreted and amplified by the appropriate processing boards, (SE-02 / N, SE-03 / N, SE-04 / N).

The A-03 sensor is indicated in the burglary protection of metal grates, gates and gates, in places where greater mechanical resistance is required, with high density

polluting or high humidity , which are typically industrial environments.

Rain, snow and high thermal variations, do not stress the sensor and do not affect its operating life.

Sensitivity, as well as l coverage area are not fixed parameters, but depend on the type of structure and the number of sensors of the line.

TECHNICAL SHEET < / strong>

Dimensions: & nbsp; 48x27x9 mm (l x w x h)
