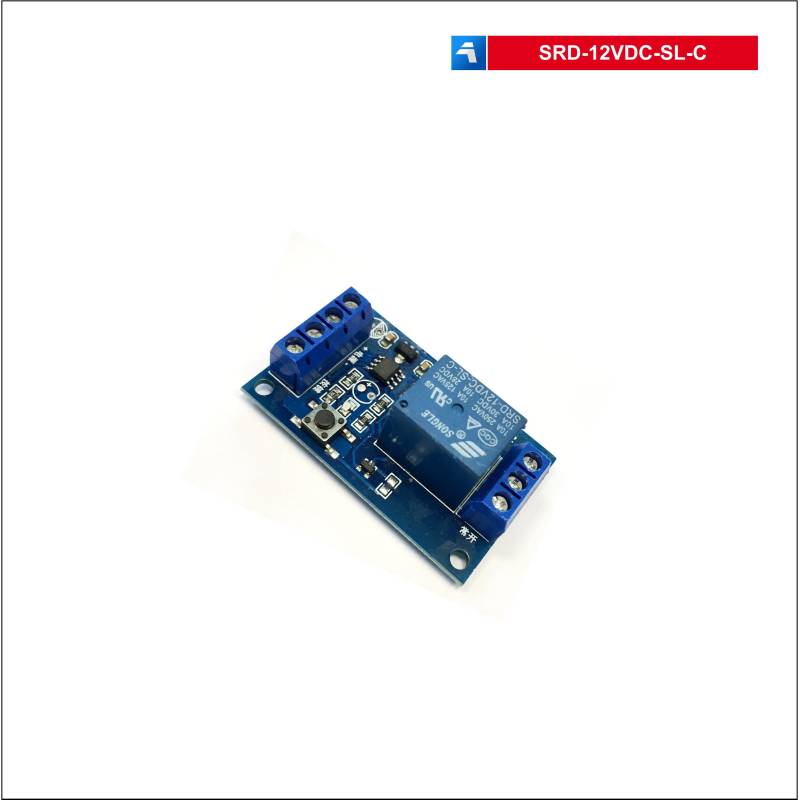

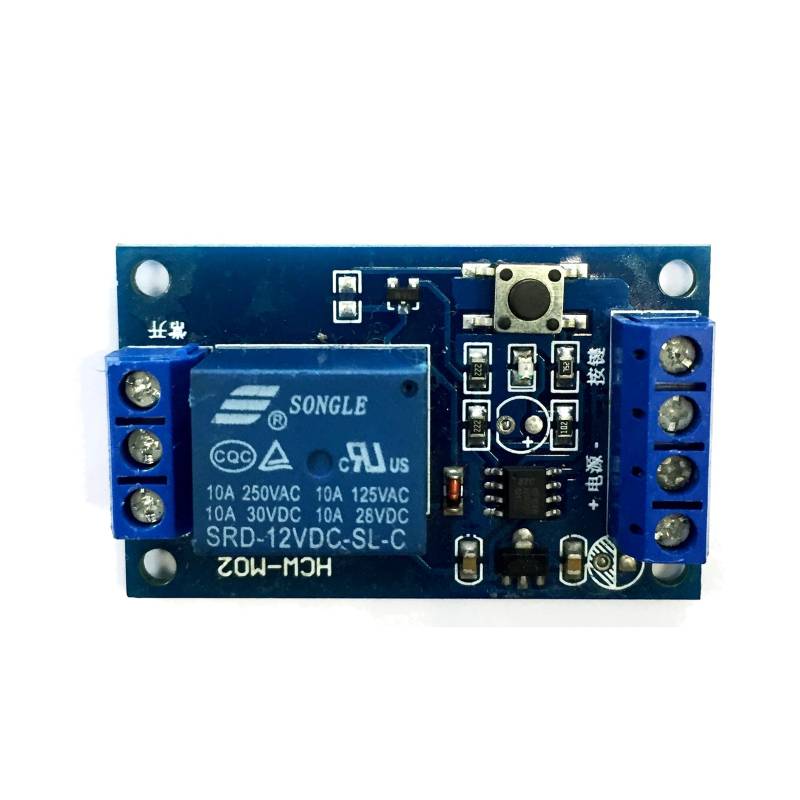

SRD-12VDC-SL-C SPDT PCB Relay Board Bistable Relay 12V Dc 10A Single 1 Change

Relay Board Bistable Relay 12V Dc 10A Single 1 Exchange SONGLE SRD-12VDC-SL-C SPDT PCB

This card allows to obtain a bistable configuration of the relay.

Once the board is powered, just connect a button / switch on the terminal block or use the button on the board to switch the relay contacts. Contacts that will always remain in the desired position.

Remember that the board must always be powered.

FEATURES:

12V power supply

NC-COM-NO relay output terminal block

Input terminal block:

Pin1 Positive 12V

Pin2 Negative 12V

Pin 3 and 4 pins for external button / switch connection

Mpn - relaybistabile12v
