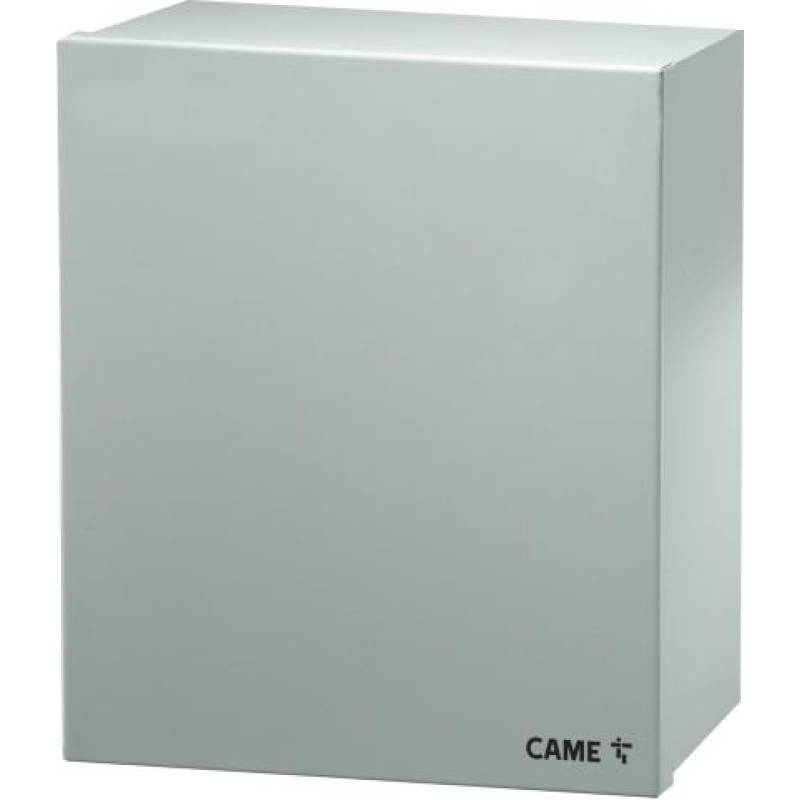

Came PXC2-32 central 8 points connected exp to 32 zones
349.00€
- Availability:
- In Stock
- Product Code:
- 846AA-0170
- Brand:
- Came
-
Quick delivery in EU & UK
-
Easy returns within 14 days
-
Always follow your orders
-
Professional tech assistance
Description
3 MODELS AVAILABLE for small systems, medium or large
& nbsp; INSTALLATION SIMPLE AND FLEXIBLE thanks to the concept of "connection points".
MULTI-SYSTEM MANAGEMENT with the configuration of independent areas
TRIPLE BALANCE CONFIGURATION for separate management of entrances.
INTEGRATION WITH CCTV SYSTEMS with protocol ONVIF S profile
CONNECTIVITY FOR EVENT MANAGEMENT available thanks to 3 different technologies: LAN, Wi-Fi and GSM / 3G
LAN AND USB PORTS for configuration, updating and saving the settings
Works with User app: & nbsp; CAME DOMOTIC 3.0
The wiring of the individual terminals is no longer bound to the concept of "entry and exit".
Each point of connection in fact, is configured only later, offering the possibility to modify the system according to individual needs, without the need to intervene on the wiring.
PXC2-32 PER SMALL SIZE SYSTEMS capable of managing up to 32 connection points between rows and radios, in 4 distinct areas
CERTIFICATION
EN 50131-6 • EN 50131-3 GRADE 2 (PXC2-32 and PXC2-64 control panels)
& nbsp;
INTERFACE USER
The new plants PXC2 are equipped with a speech synthesis system thanks to which it is possible to combine each event with a voice message to be transmitted to a series of telephone numbers or carry out remote control of the control unit itself supports PUSH NOTIFICATIONS through the Came Domotic App, these are organized by macro-families, in order to make control more immediate of events.
In the same way e-mail notifications cataloged by can be scheduled to be sent type.
The function "duress" allows the sending of a silent alarm, just in case the user is forced to deactivate the system against his will.
& nbsp;
UPDATE SYSTEM
It is possible perform all system configuration and update operations, via LAN or via USB ports on the control panel:
Updating the control panel software and firmware with USB pen drive.
Configuration of the control panel and peripherals from PXC2-Manager on PC via LAN.
Backing up the configurations and reset on the same system, or on other systems, in case emergency.
& nbsp;
FEATURES FUNCTIONAL & nbsp; PXC2-32
Points of control unit connection: 8 configurable as input or output
Points of external connection: & nbsp; 24 configurable as input or output
Points of total connections: 32 configurable as input (wire or radio) or output. The wired inputs / outputs are available through the modules on Bus PX4IOR. For the addition of radio inputs requires the receivers to be connected to the control unit PXWRX0164
Relay outputs in central: 1
Bus I / O modules: 16
Keyboard on board: No & nbsp;
Bus: 1 RS485 line
Areas: 4
Scenarios: 32 & nbsp;
Inserters: 4 & nbsp;
Keyboards (radio or wire): 4 wire + 4 radio & nbsp;
Keys: 99
Programmer timetable: weekly / daily for complete system management
Events: 1000
PSTN connectivity: Via module PXTEL01
GSM connectivity, GPRS or 3G: T via PXMC3G module
Speech synthesis: of series
Porta di communication: USB3, for PXDGWF WIFI dongle connection, programming and firmware update3, for WIFI PXDGWF dongle connection, programming and firmware update
LAN connection: standard
Video verification live (ONVIF cameras): Via PXONV module
Programming remote via internet: Yes
Link with home automation system: via LAN
Power supplies on Bus: 2
& nbsp;
FEATURES TECHNIQUES PXC2-32
Power supply: 230 V AC –15% + 10% 50/60 Hz
Absorption Card: (excluding battery charging and accessory cards) 150 mA
Power supply: 2,4 A switching
Battery: 7.2 Ah (not included)
Degree of protection: IP30
Dimensions: 405 x 295 x 90 mm
Weight (without battery): & nbsp; 4.7 Kg
Material: & nbsp; Metallic container
Temperature of operation: From - 10 ° to + 40
Temperature of storage: From - 10 ° to + 50 °
Relative humidity in operation: 75% R.H. No condensation
Relative humidity in storage: 75% R.H. No condensation
Compliance regulation: EN 50131-6 Grade 2 environmental class I
