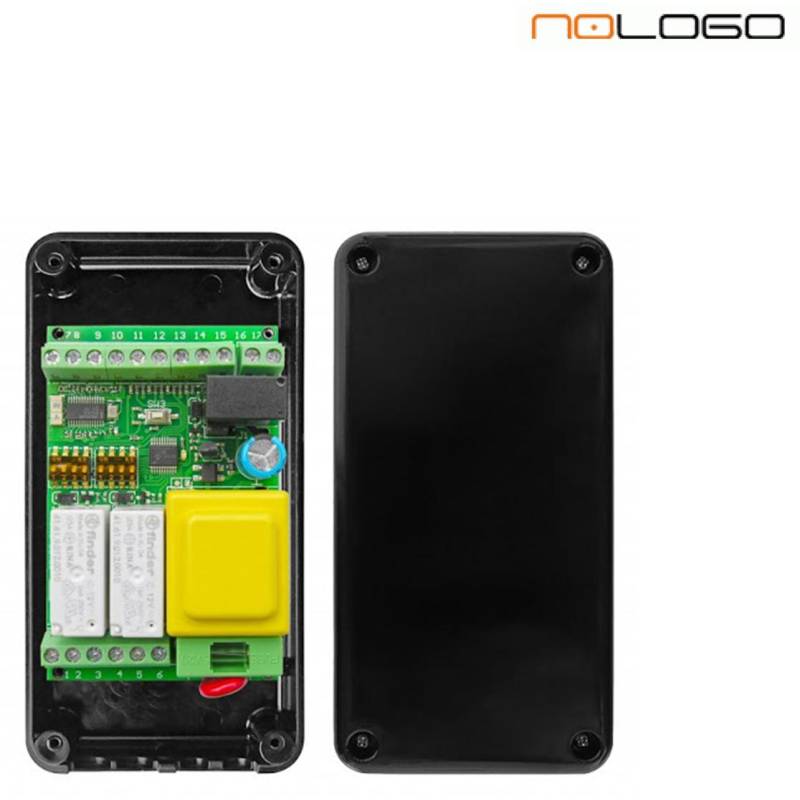

Nologo START-S1XL Dedicated control unit for the control of roller shutters, curtains and shutters

START-S1XL v2.0
Single-phase control unit for 1 230 Vac motor

Gates sliding

overhead doors

shutters.

3 speeds of slowing down, automatic time learning, 4 operating modes, management integrated radio codes
Dedicated control unit for the control of roller shutters, curtains, shutters.

Operation normal UP and with anemometer.

Receiving radio integrated with management of fixed codes and rolling code HCS ..

Opens and closes separate or step-by-step selectable. Closed on BOX-2

The START-S1XL is an electronic card of the new generation with counting times in digital.

In the project I am the most advanced techniques have been adopted to guarantee maximum immunity in the against disturbances, the best flexibility of use and the widest choice of available features.

The control unit is designed to connect motors with mechanical limit switches on board

Entrance photocell: if the motor is closing, it reverses motion. (NC input).

If the control unit it is used to automate a roller shutter or awning, upon intervention by the sensor inhibits for 3 minutes.

It is possible connect a 220 vac flashing light
