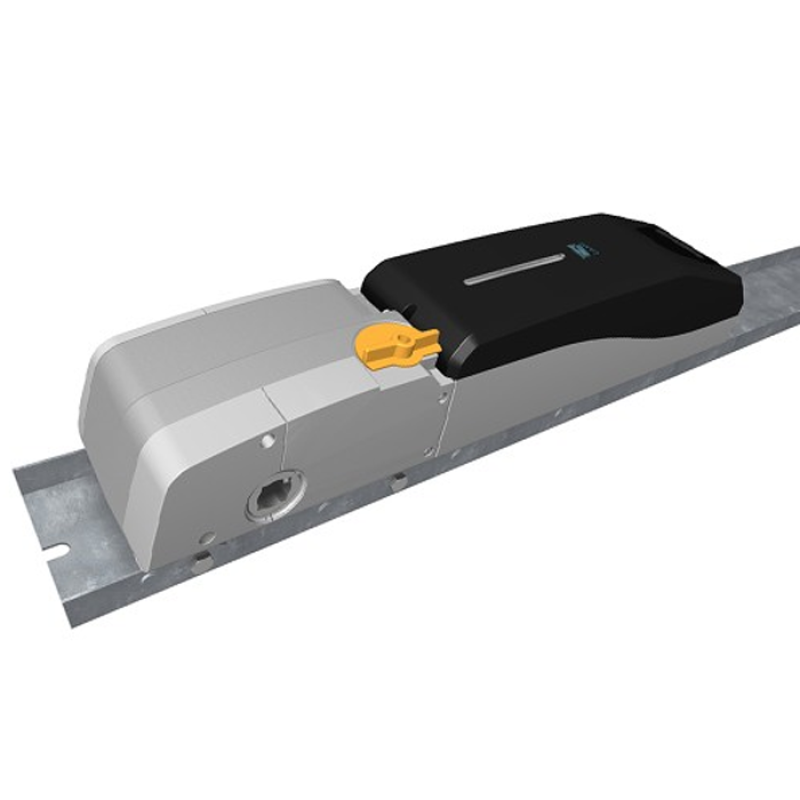

• CAME EMEGA40 - Irreversible 24V gearmotor for up-and-over doors max 14m2

CAME EMEGA40 - Irreversible 24V gearmotor for up-and-over doors max 14m2

Not yet rated Write a review
348.00
Availability:
In Stock
Product Code:
EMEGA40-14MQ
Brand:
Came
Came

trustpilot recensioni

  • Quick delivery in EU & UK

  • Easy returns within 14 days

  • Always follow your orders

  • Professional tech assistance

Description

Emega40 motor irreversible up-and-over doors up to 14m2 24V
& nbsp;
"Gearmotor only" version in cases where the use of two motors is essential, for example large insulated doors, even up to a surface of 14 m².
& Nbsp;
Ideal for moving quickly and quietly all types of counterweight overhead doors, but also springs, whether they are simply made of sheet steel, wood or insulated.
& Nbsp;
Benefits

- Intensive use. designed to facilitate the passage even where intensive use of the door is foreseen
- Obstacle detection. Encoder technology that constantly analyzes the regular operation of the door, stopping or reversing motion in case of contact with any obstacles.
- Reliability that lasts over time. Die-cast aluminum structure capable of resisting over time also the stresses caused by intensive use, for example in condominium applications.
- Innovative "all in one" design. The body of Emega40 integrates the electronic and management card, as well as any batteries for opening in emergency situations
- Maximum functionality. Easy installation, facilitated by the small dimensions of the product
- No compatibility limit. Perfectly compatible with the same mounting base as the Emega system, to guarantee the interchangeability between the two automatisms.
- Release lever. Placed on the casing, it allows connection to the standard door handle for manual opening also from the outside
- Emergency batteries. Emergency batteries are available as accessories to use the door even in the event of a blackout; fully integrable inside the automation container
& Nbsp;
Full automation control (EM4024CB)

- Control and programming pushbutton incorporated outside the automation and immediately available.
- Initial set up
- Open or close command
- Display of functions
- Speed ​​adjustment
- Regulation of slowdowns
- Signaling LED for function diagnostics

TECHNICAL SHEET

Degree of protection: IP50
Panel power supply: 230V A.C. (50/60 Hz)
Motor power supply: 24 DC (V - 50/60 Hz)
Max absorption: 15A
Nominal Power: 170W
Maneuver time: Adjustable
Work intermittence: Intensive service
Torque (Nm): 290
Operating temperature: -20 ° C min. +55 ° C max.
