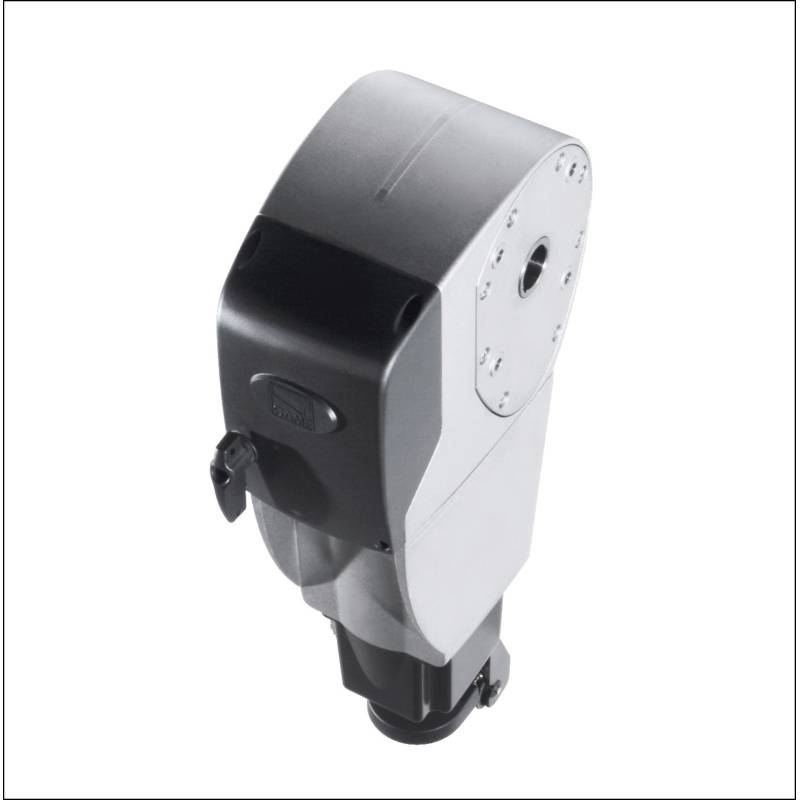

Came 001C-BX Gearmotor with mechanical limit switches.

The CBX series gearmotor has been designed to mainly automate sectional doors with direct drive on the spring shaft
from Ø 1” (Ø 25,4 mm) or with chain drive.

Also suitable for sliding and folding doors with the relative accessories.
Any use, other than what is described above and installations in ways other than what is set out in the technical manual,
are to be considered prohibited.

230V gearmotor with mechanical limit switch and control panels
001C-BX / 001C-BXK – Gearmotor 230V A.C. with mechanical limit switch
002 ZC3 / 002 ZM3E – Control panel
002 ZC3C / 002 ZM3EC – Control panel with safety lock and command buttons

The CBX series can be supplied with some of the following completion accessories, depending on the type of installation (sectional, a
book or slide):
001 CMS – Release handle with personalized key and return cord (L = 7 m);
009 CCT – Simple 1/2” chain for sliding or folding doors;
009 CGIU – Joint for 1/2” chain;
001 C001 – Manually operated winch for sectional doors;
001 C002 – Pendulum release system;
001 C003 – Chain tensioner transmission system and brackets for sliding doors;
001 C004 – Chain tensioner transmission system and brackets for folding doors;
001 C005 – Chain transmission system for sectional doors higher than 5.5 m;
001 C006 – Pack of 2 brackets for sectional doors (specific for direct drive applications with soft shaft Ø 1”);
001 C007/8 – Adapters for sectional doors with Ø25 mm (C007) or Ø40 mm (C008) pole;
001 C009 – Bracket for sectional doors (specific for direct drive applications with soft shaft Ø 1”)

Technical info:
Motor power supply: 230v
Absorption: 2.2A
Maximum torque Nm: 60
Reduction ratio: 1/67 45

Power: 450W

Shaft number of revolutions: 34
Rotation speed rpm: 21.5
duty cycle: 30%
Degree of protection: Ip54
Motor thermal protection: 150°
Operating temperature: -20+55
