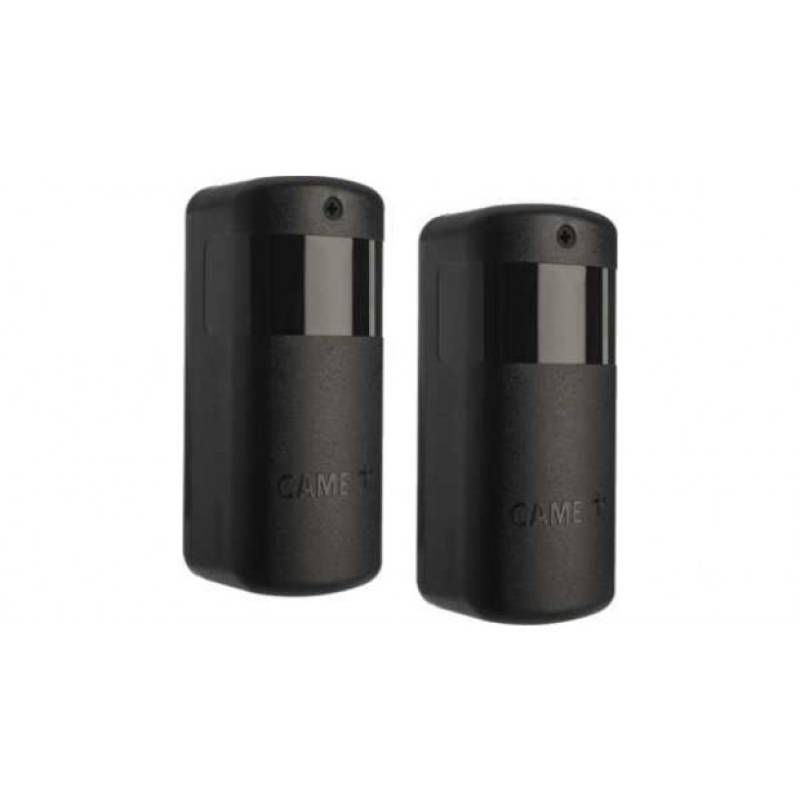

Came DX20RCAP-806TF-0030 Pair of synchro photocells swiveling outdoor Range: 20 m

The new generation of DXR synchronized infrared adjustable photocells are specially designed for applications with limited mounting spaces. vertical axis.

Control of the gate's movement areas.

Infrared beam adjustable up to 180 ° with respect to the vertical axis.

Synchronization of up to 8 pairs of photocells without interference and without wire connection between transmitter and receiver.

Double-height column available for installations on passages where heavy vehicles pass.

Adjustment of the infrared range.

Filter function to avoid false detections due to bad weather and solar interference.

Adjustable contact output to use the photocell also as a control device.

Also available in version with aluminum alloy container.

Technical details

Degree of protection (IP) 54

Power supply (V) 12 - 24 AC - DC

Max range 20 mt

Absorption (mA) 40

Max output contact rating at 24 V (A) 0.5

Operating temperature (° C) -20 ÷ +55

ABS material

Dimensions mm (LxHxP) 46 x 108 x 37
