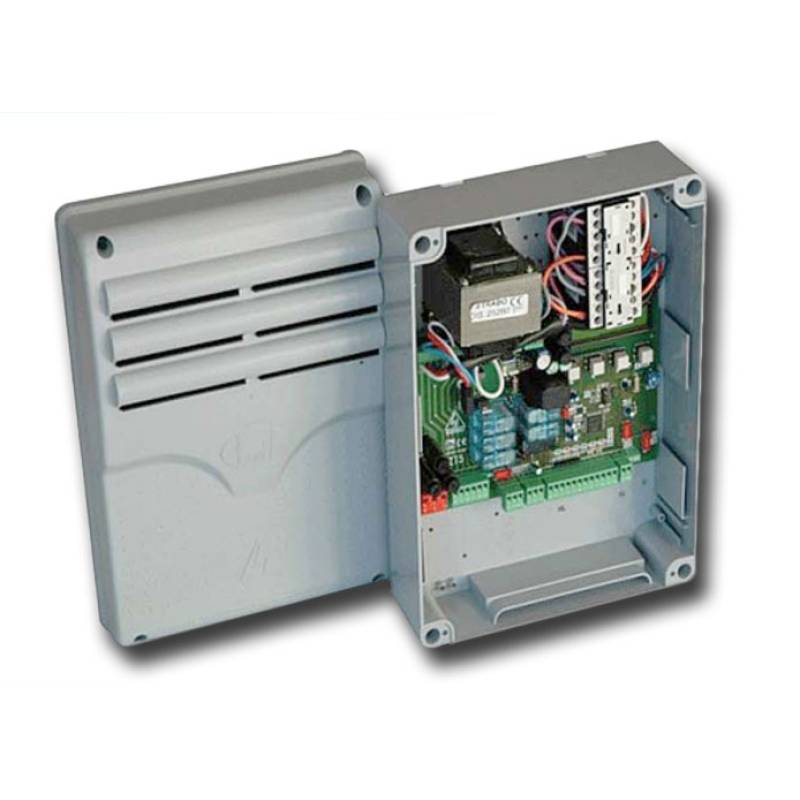

CAME ZT5 Three-phase control panel with radio decoding for C BX series

Not yet rated Write a review
376.70
Availability:
In Stock
Product Code:
ZT5
Brand:
Came
Came

trustpilot recensioni

  • Quick delivery in EU & UK

  • Easy returns within 14 days

  • Always follow your orders

  • Professional tech assistance

Description

Three-phase 230-400 Vac control panel with built-in radio decoding.

 Suitable for controlling the C-BX automation

 and the 001C-BXT automations for sectional, sliding and folding doors.

 Self-diagnosis function of the safety devices and provision for inserting the CAME radio card.
 IP54 degree of protection
 Power Supply Voltage (V) (50/60Hz) 230/400 A.C. three-phase 60
 Absorption at rest (A) 50mA
 Rated power (W) 750
 Maximum power of 24V accessories (W) 20
 Maximum power of 230V accessories (W) 85
 Insulation class II
 ABS material
 Operating temperature (°C) -20 ÷ +55 °C


 Power supply at 230 V AC / 400 V AC with 50/60 Hz frequency.
 The panel is protected at the input with an 8 A fuse, while the
 low voltage accessories (24 V) are protected by a 1 A fuse.
 Total power of the accessories (24 V) 20 W.
 Out 380V three-phase
 The board manages and controls the following functions:
 - automatic closing after an opening command;
 - partial opening for pedestrian passage;
 - obstacle detection with the gate stopped at any point;
 - maintained action control;
 - pre-flashing of the movement indicator.
 The command modes that can be defined are:
 - opening closing;
 - opening/closing with maintained action;
 - partial opening.
 The photocells, after detecting an obstacle, can
 provoke:
 - reopening if the gate is closing;
 - reclosing if the gate is opening.
 You can also connect:
 - courtesy lamp lighting the maneuvering area for one
 fixed time;
 - courtesy lamp for lighting the cycle maneuvering area
 opening closing.
