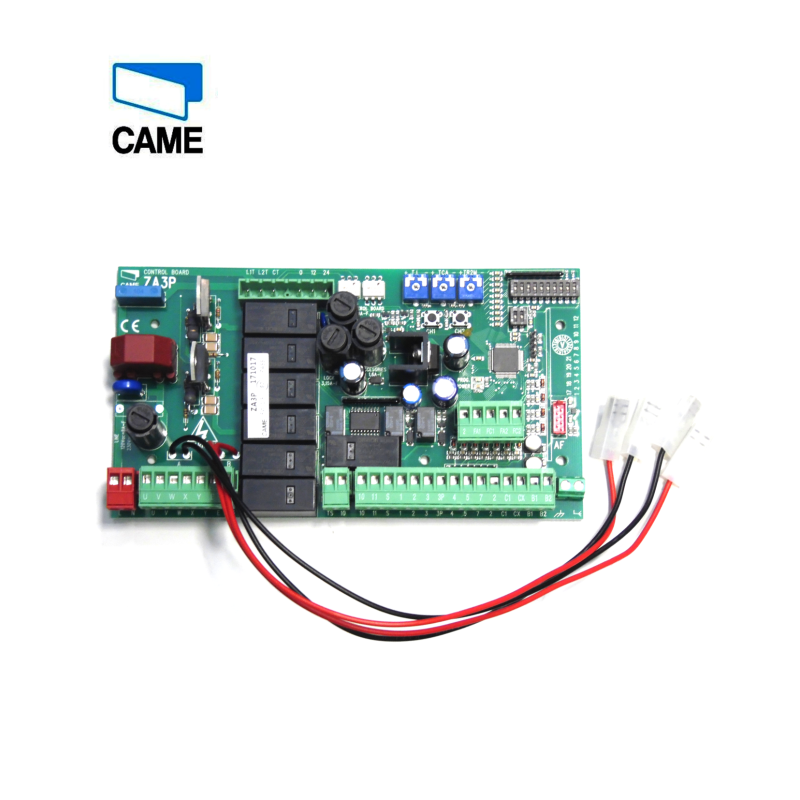

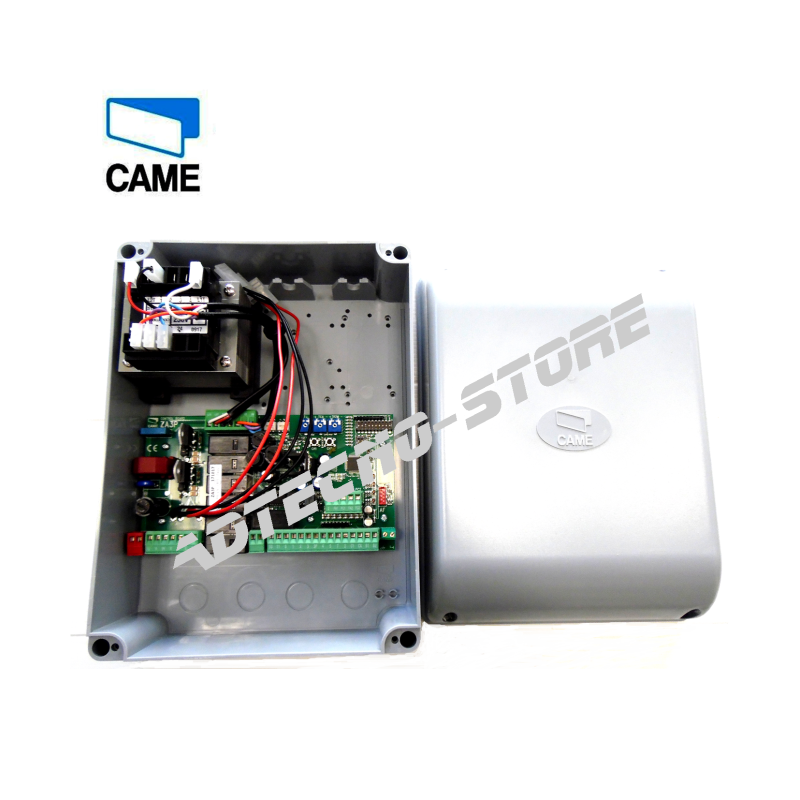

CAME ZA3P Multifunction control panel for gates with two swing doors 230v

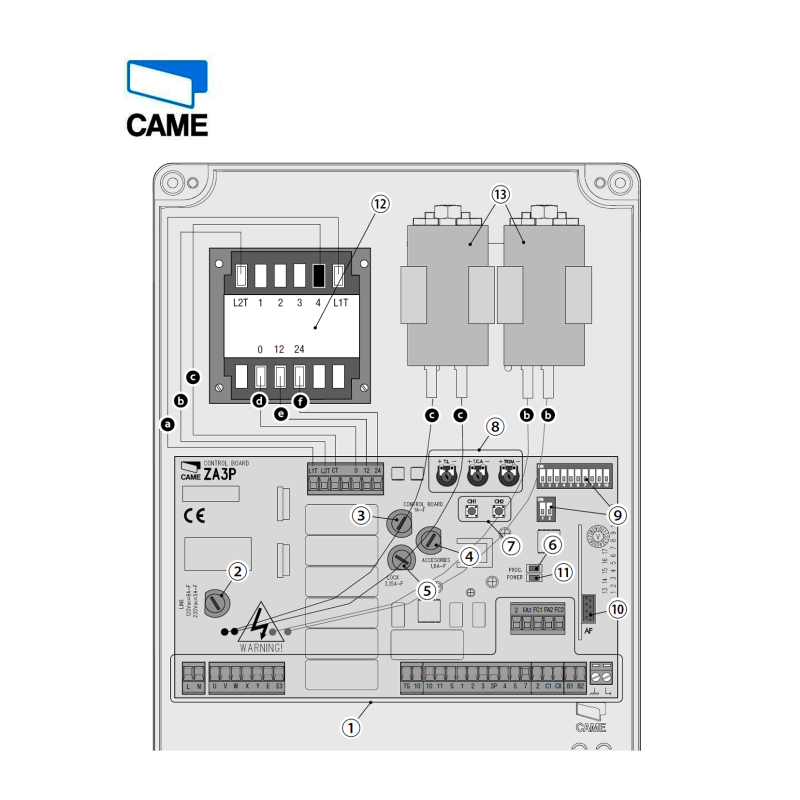

Framework multifunction control for swing gates, with limit switch management e slowdown speed adjustment.

The control devices and accessories are 24V. & nbsp; Accessories don't have to overall exceed 20W.

All connections are protected by fast fuses. & nbsp; The card provides and checks the following functions:

- automatic closing after an opening command;

- pre-flashing of the movement indicator;

- obstacle detection with gate stopped at any point;

- adjustment of the drive torque of the connected automation;

- water hammer at the opening;

- fixed slowdown of 10 seconds with adjustable speed;

- limit switch management:

The command modes that can be defined are:

- opening / closing;

- maintained action opening / closing;

- partial opening;

- total stop.

The photocells, after the detection of an obstacle, can cause:

- reopening if the gate is closing;

- reclosing or partial stop if it is opening;

- partial stop if it's opening.

Appropriate trimmers regulate:

- the automatic closing intervention time;

- closing delay of the gearmotor M2;

- work time.

E ' You can also link:

- gate open signal lamps;

- cycle lamps;

- electric lock. & nbsp;

Intended use

The ZA3P control panel has been designed to control automations for swing gates ATI, FERNI, KRONO, FAST

and FROG powered at 230V.

Limits of use

The total power of the connected motors must not exceed 600 W.

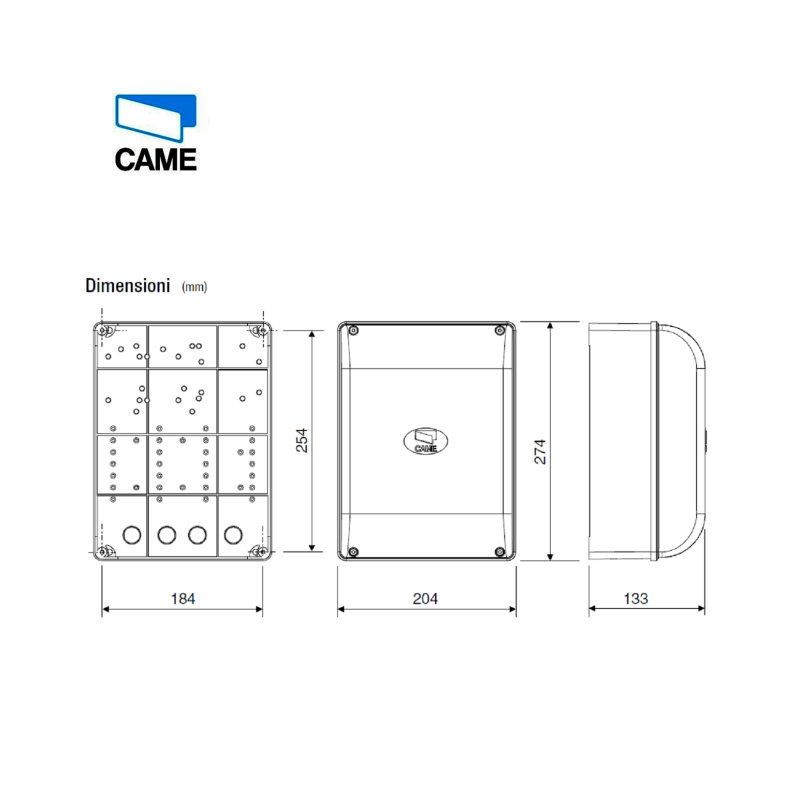

Technical data ZA3P

Degree of protection (IP) 54

Power (V - 50/60 Hz) 230 AC

Absorption at rest (mA) 60

Power max (W) 600

Material of the ABS container

temperature operating temperature (° C) -20 ÷ +55

& nbsp;

REPLACE THE MODELS:

090

ZA1

ZA2

ZA3
