CAME - 806RV-0020 RBE40230 Four-channel radio module 230 V
163.90€
- Availability:
- In Stock
- Product Code:
- 806RV-0020
- Brand:
- Came
-
Quick delivery in EU & UK
-
Easy returns within 14 days
-
Always follow your orders
-
Professional tech assistance
Description

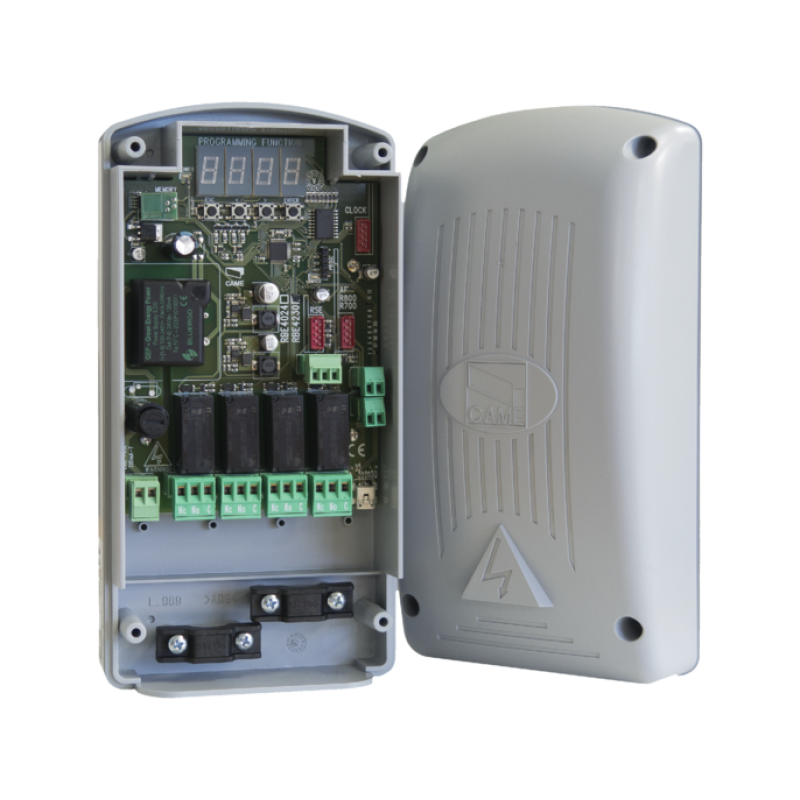

CAME 806RV-0020 RBE40230 Four-channel radio module 230
V
Four-channel external receiver, for the command
automation radio and accessories.
Multifrequency, it stores up to 3000 codes / user. It also manages the digital keyboards S5000 / 6000/7000 and
the transponder sensors TSP00 and LT001. It is equipped with a 4-digit display and a Memory card
Roll for saving storage. The programming and management of the system can
can also be performed remotely via CRP or from a PC via USB (with the RBE software, available
on request). TECHNICAL DATA Degree of protection (IP) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
54
Power supply (V) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
120-230 BC Frequency (Hz) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
50/60
Standby consumption (W) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
0.67-0.8
Max power (W) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
3-3.2
Resistance load relay contact rating cosφ = 1 (A / V) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
5/230 ABS container material Operating temperature (° C) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
-20 ÷ +55 Device class & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
II
Weight (kg) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; 0.6
Relay contact rating - inductive load (A / V) & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; 1.5
/ 230
