AMC KIT BLADE 01-WB Blue Led Self-powered siren with 2 Ah ELAN battery
96.00€
- Availability:
- In Stock
- Product Code:
- BLADE01WB-BT
- Brand:
- AMC Elettronica
-
Quick delivery in EU & UK
-
Easy returns within 14 days
-
Always follow your orders
-
Professional tech assistance
Description

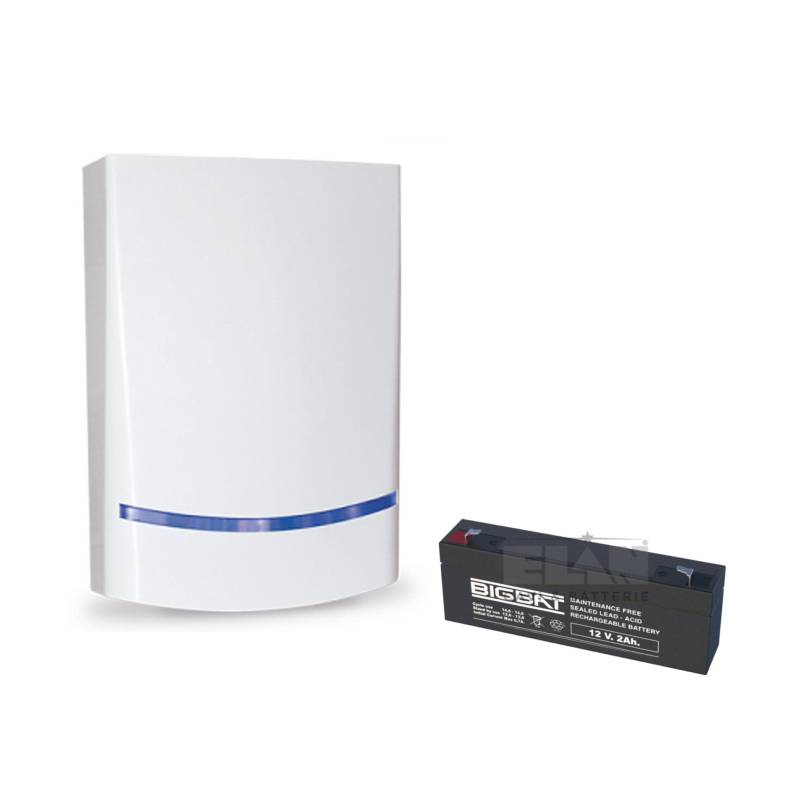

KIT consisting of an AMC BLADE01-WB siren and an ELAN BIGBAT 12V 2Ah battery.
BLADE01-WB: white body, blue led flashing light
Blade is a self-powered and self-protected outdoor siren,
with a fresh and elegant design, suitable for all installation needs.
It is a product made entirely of polycarbonate.
All BLADE models are equipped with an anti-opening and anti-tear device.
The sound power uses piezoelectric technology, ensuring low consumption during the alarm phase.
The Blade 01-WB siren has a power of 105dB,
it can be driven with positive missing / giving and negative missing / giving,
and is equipped with a low consumption LED flashing light and STAND BY signaling.
The STAND BY signal is constant flashing at 2 sec. of the blue flasher leds,
indicating that the system is powered and operational.
SIREN TECHNICAL SHEET:
Nominal power supply: 13.8 VDC
Operating limits voltages: 11 - 15 Vdc
Current absorbed at maximum power: 150mA
Current absorbed at rest: 8mA
Sound pressure (at Vn = 13.8V): Type = TONE 105 dB (A) at 1 m
Sound timing and flashing without control: 5 ± 20%
Backup battery: 12V 2.2Ah
Dimensions: 210mm (l) x 295mm (H) x 70mm (P)
Operating temperature: -40 ° C + 60 ° C
Weight: 700g with battery

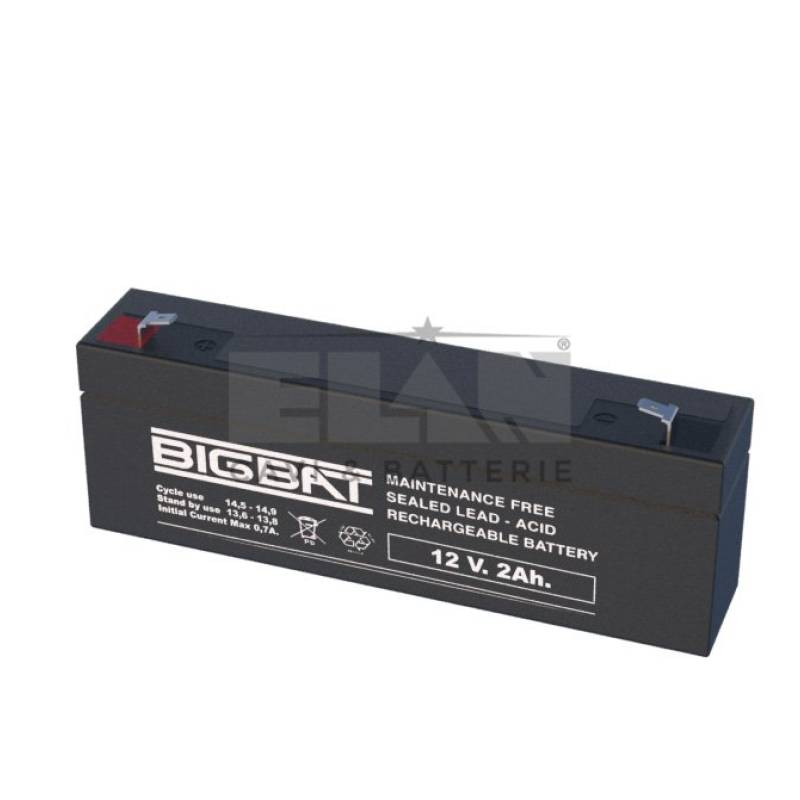

BIGBAT ELAN 12V 2Ah BATTERY:
Operating voltage - 12V
Number of cells - 6
Nominal life cycle - 5 years
Internal resistance - fully charged battery - 25 ° C ≤ 60mOhms
Self discharge - 3% capacity reduction per month at 20 ° medium - 3%
Max. Discharge current - 25 ° C 34.5 A (5s)
Short circuit current - 115 A
Charging methods - charging with constant voltage 25 ° C
Dimensions and weight
Length 178 mm
Width 35 mm
Height 61 mm
Total height 67 mm
Weight approx 0.90 kg
